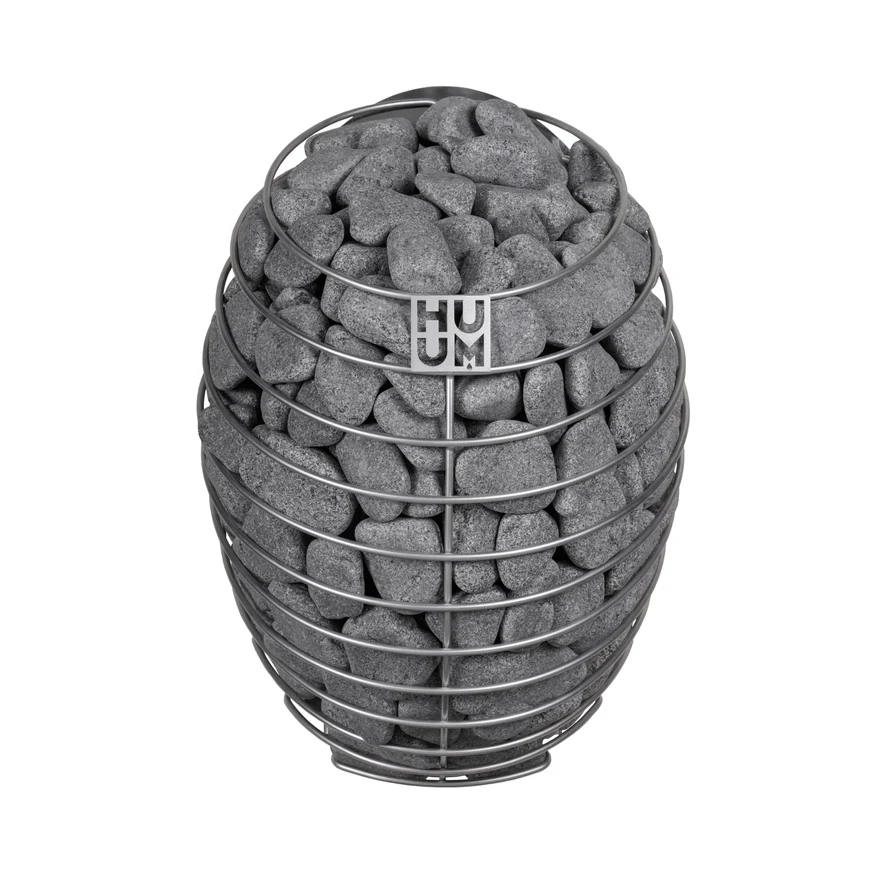

HUUM DROP Electric Sauna Heater
The HUUM DROP Electric Sauna Heater is inspired by nature's purest element: a drop of water. The sleek rain drop design brings a unique and elegant feel to any sauna interior.
Despite its compact size, the DROP can accommodate up to 60 kgs / 132 lbs of stones, which is more than most wood-burning heaters. This means that the DROP generates a smooth and long-lasting steam, perfect for a relaxing sauna experience.
The HUUM DROP Electric Sauna Heater is made of durable stainless steel, ensuring years of use, and comes with a 5 year warranty. It's also wall-mounted, making it easy to install and maintain.

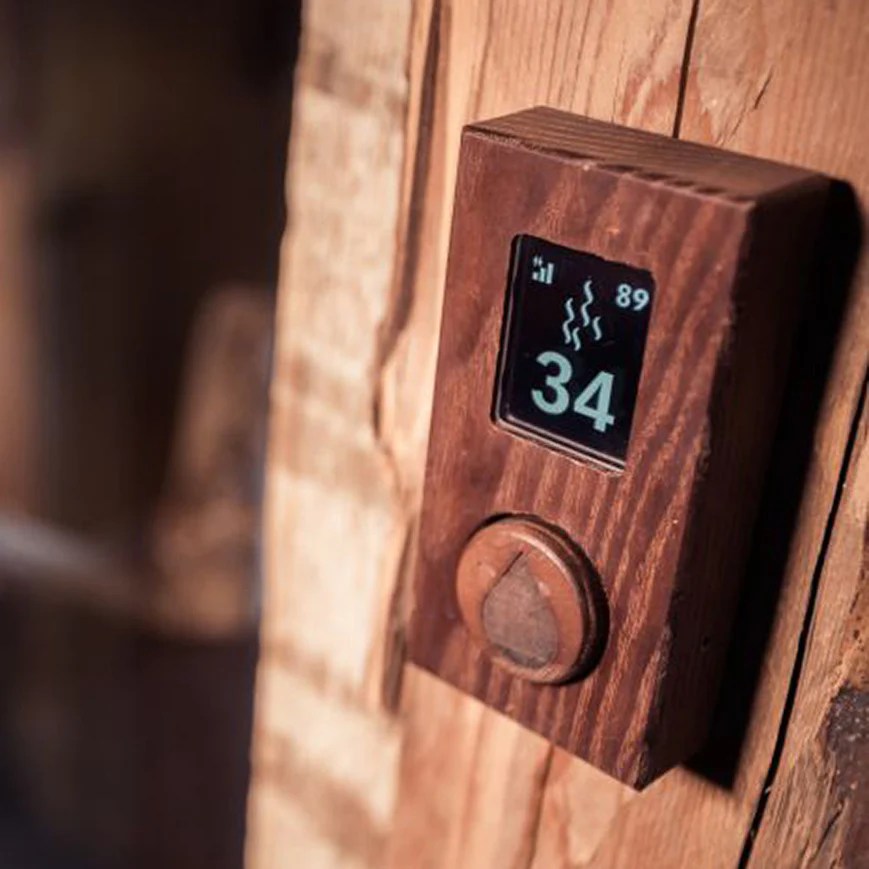

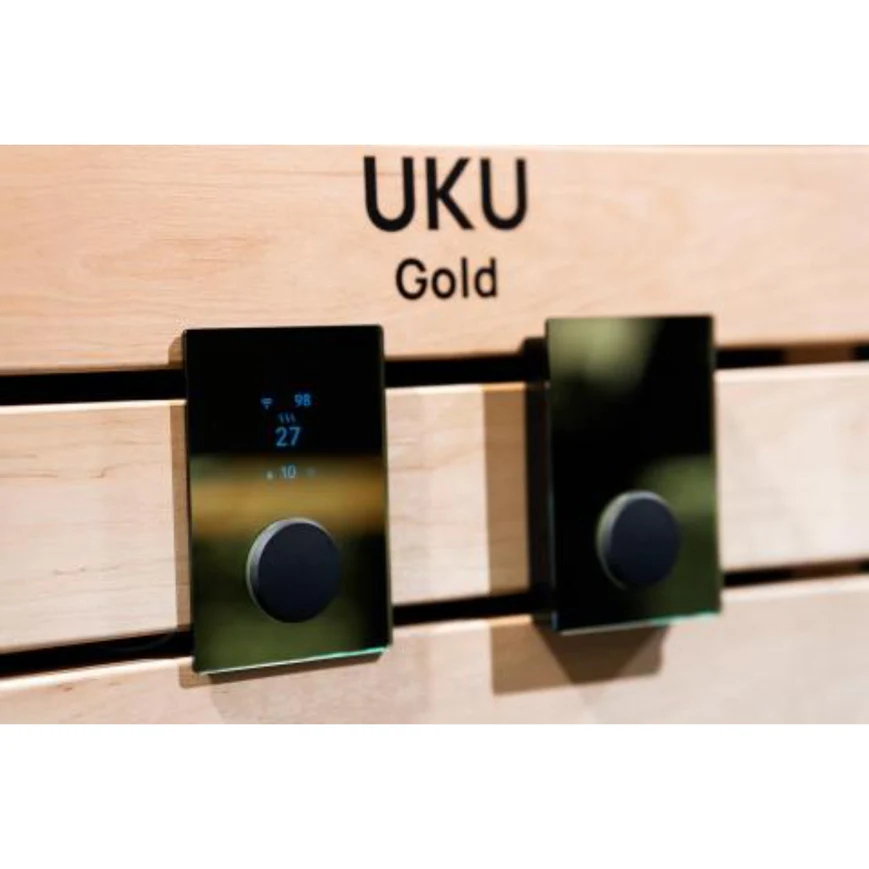

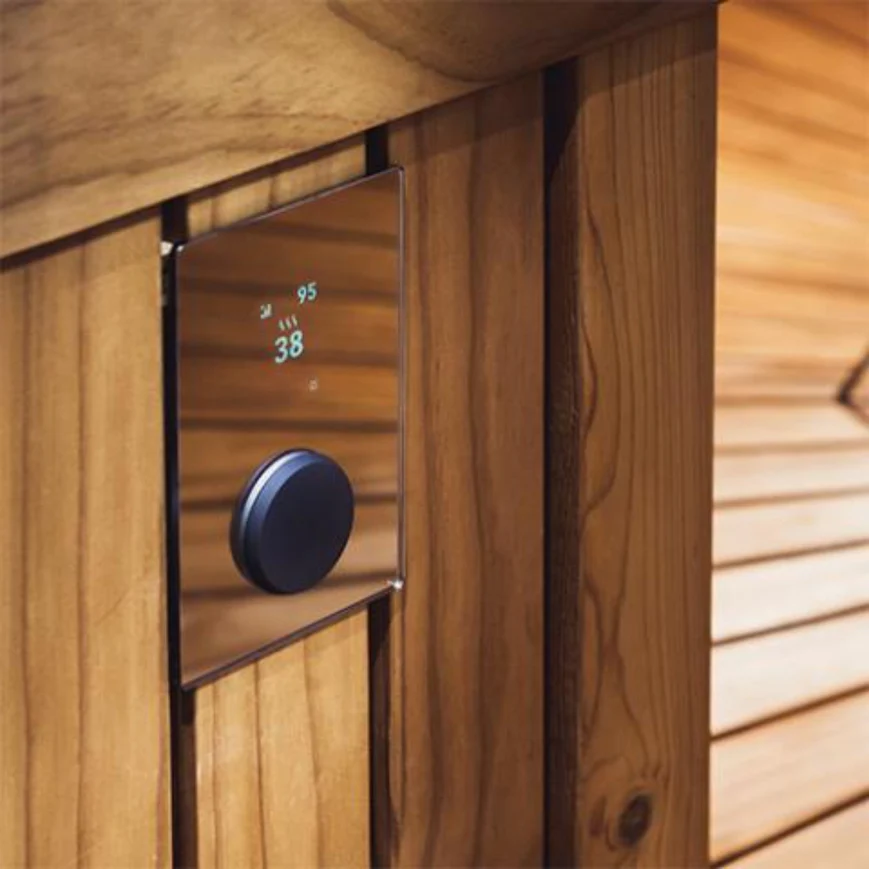

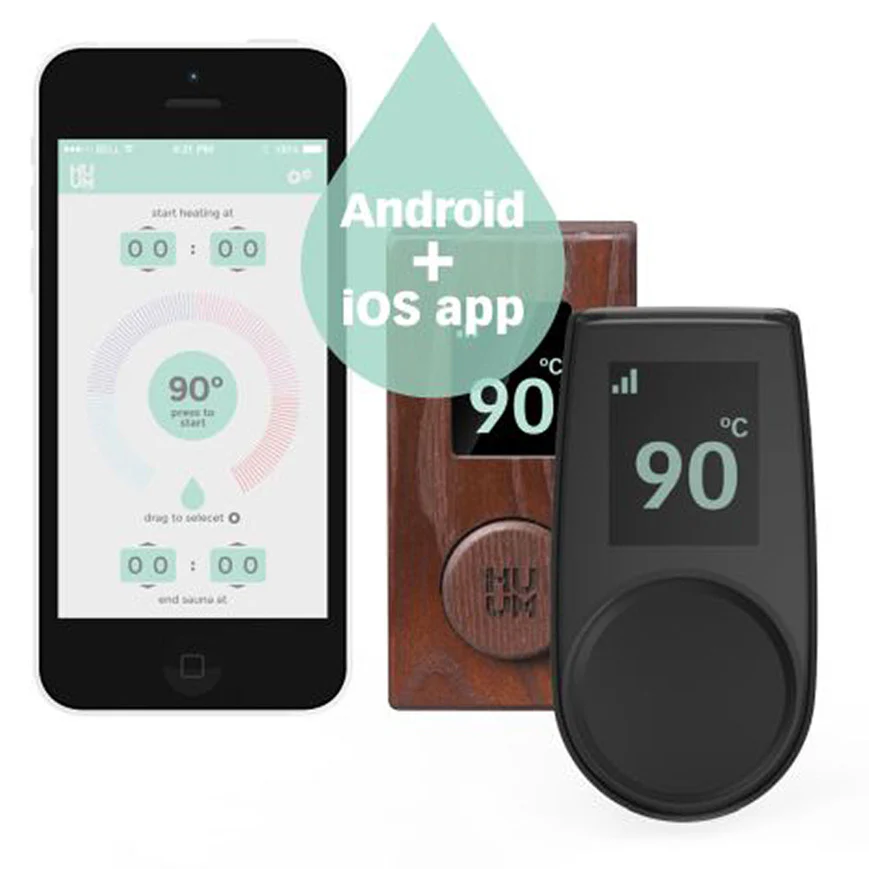

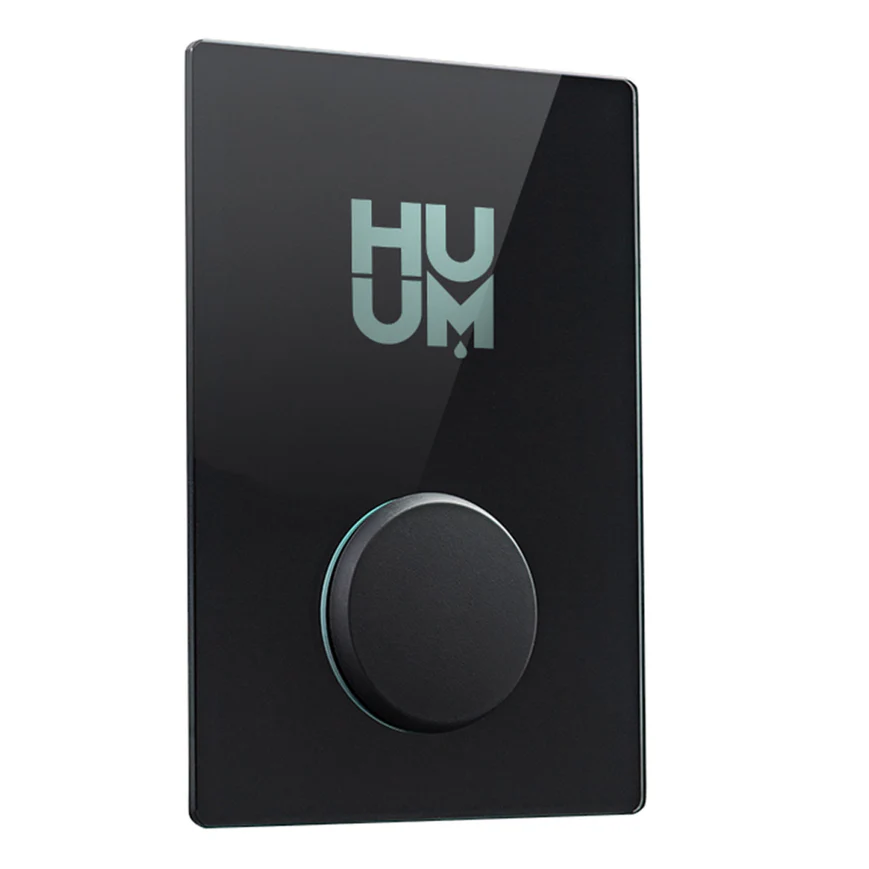

The DROP is controlled by an elegant UKU Controller, in your choice of 9 different finishes. Choose any of these options in either a locally controlled or WIFI enabled controller for remote use.

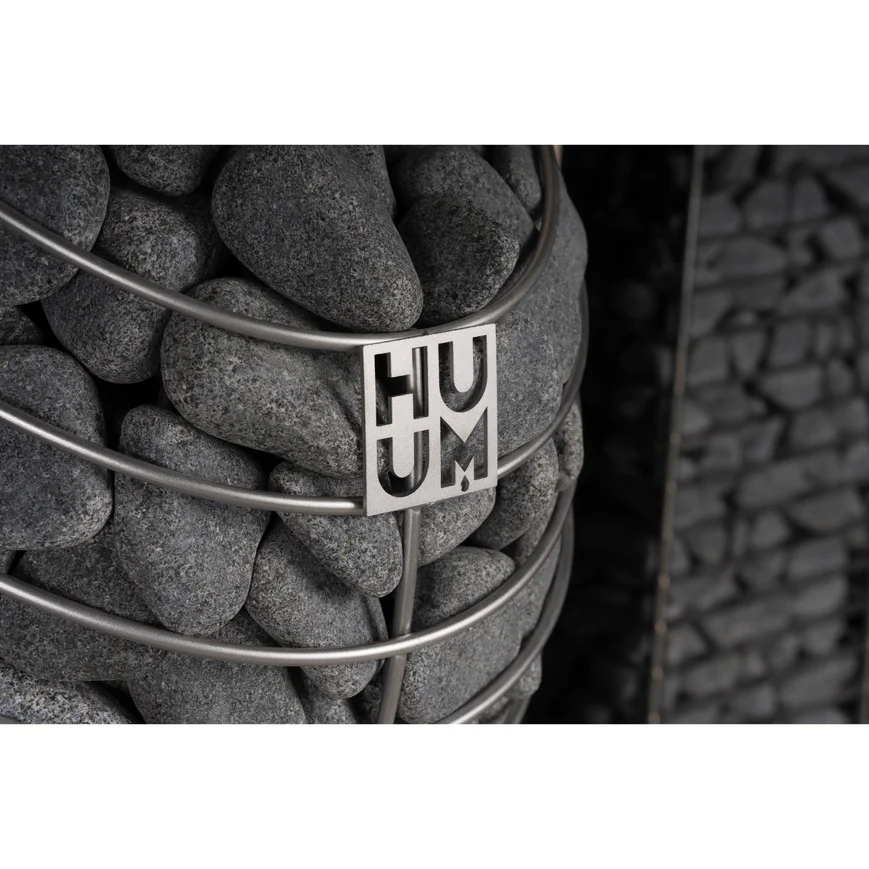

The DROP requires 60kg / 132 lbs of stones. We recommend any type of igneous stones 5-10cm in size, or you can purchase 4 boxes of HUUM High Quality Olivine Stones which are collected in Finland.

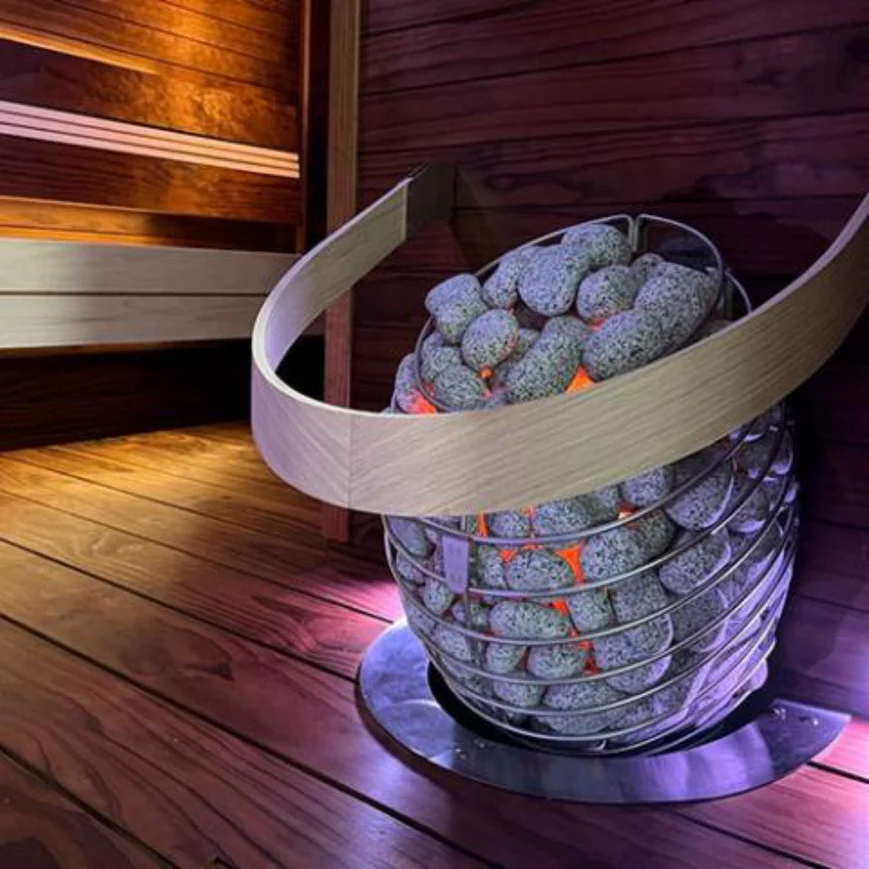

Add the DROP Safety Rail for added safety and an aesthetic touch.
Choosing the right size:
DROP 4.5 - 4.5 kW Heater - For sauna rooms from 102 - 247 cubic feet
DROP 6 - 6.0 kW Heater - For sauna rooms from 180 - 350 cubic feet
DROP 7.5 - 7.5 kW Heater - For sauna rooms from 230 - 441 cubic feet
DROP 9 - 9 kW Heater - For sauna rooms from 290 - 530 cubic feet
Package contents:
- Sauna Heater
- Wall-mount bracket
- Installation and operation manual
- 5-year limited warranty (excluding heating elements)
Required for operation:
- UKU Control
- 122 lbs stones [(4) 33 lbs boxes of HUUM High Quality Stones]
Technical Information:
DROP 4.5 kW
- Dimensions: 15.4" W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
- Watts: 4500
- Volts: 240
- Amps: 18.8
- Phase: 1PH
- Room Volume: 106 - 247 CU. FT.
- Rock Capacity: 122 lbs
- Weight: 20.9 lbs (9.48kg)
Connection:
- Fuse 30 A
- Supply voltage 240 V 2~
- Power cable 10 AWG
Safety Distances - (Refer to diagram below):
- A - 100 mm
- B - 590 mm
- C - 435 mm
- D - 170 mm
- E - min 310 mm
DROP 6 kW
- Dimensions: 15.4" W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
- Watts: 6000
- Volts: 240
- Amps: 25
- Phase: 1PH
- Room Volume: 177 - 353 CU. FT.
- Rock Capacity: 122 lbs
- Weight: 21.9 lbs (9.93kg)
Connection:
- Fuse: 30 A
- Supply voltage: 240 V 2~
- Power cable: 10 AWG
Safety Distances - (Refer to diagram below):
- A - 120 mm
- B - 630 mm
- C - 455 mm
- D - 190 mm
- E - min 310 mm
DROP 7.5 kW
- Dimensions: 15.4" W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
- Watts: 7500
- Volts: 240
- Amps: 31.25
- Phase: 1PH
- Room Volume: 230 - 441 CU. FT.
- Rock Capacity: 122 lbs
- Weight: 25 lbs (11.33kg)
Connection:
- Fuse: 30 A
- Supply voltage: 240 V 2~
- Power cable: 8 AWG
Safety Distances - (Refer to diagram below):
- A - 140 mm
- B - 670 mm
- C - 475 mm
- D - 210 mm
- E - min 310 mm
DROP 9 kW
- Dimensions: 15.4" W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
- Watts: 9000
- Volts: 240
- Amps: 37.5
- Phase: 1PH
- Room Volume: 282 - 530 CU. FT.
- Rock Capacity: 122 lbs
- Weight: 25 lbs (11.33kg)
Connection:
- Fuse: 30 A
- Supply voltage: 240 V 2~
- Power cable: 8 AWG
Safety Distances - (Refer to diagram below):
- A - 150 mm
- B - 690 mm
- C - 485 mm
- D - 220 mm
- E - min 310 mm
Warranty
HUUM LIMITED 5-YEAR WARRANTY
General:
The purchaser is obliged to review the user manual of the product and follow the requirements stated therein. The warranty does not extend to failures due to non-compliance with the rules of use provided for in the manual. The warranty is valid, if the product has a technical defect or fault caused by the manufacturer.
- The warranty covers the replacement of the product or of parts with manufacturing defects.
- The warranty period is 5 years from the date of purchase.
- NOTICE: The warranty is based on the presentation of the purchase receipt/invoice. The right to submit a claim is valid on the condition that the product has been used only for the intended purpose and conditions.
Warranty terms:
- NOTICE: The warranty does not extend to heating elements of the electric heaters, these are considered expendable parts.
- The warranty does not cover the defects caused by normal wear and tear of the product.
- The warranty does not apply to heater stones.
Warranty does not cover the defects which are caused by:
- Transport and other accidental damage to the product;
- Careless or improper storage and use of the product and overloading;
- Failure to comply with the instructions for installation and operation of the product and safety requirements.
Warranty does not apply:
- If the product has been repaired by an unauthorized person, if non-approved parts have been added to the product, or if consumables not accepted by the manufacturer have been used (e.g. heating elements);
- If the set of product is not complete.
