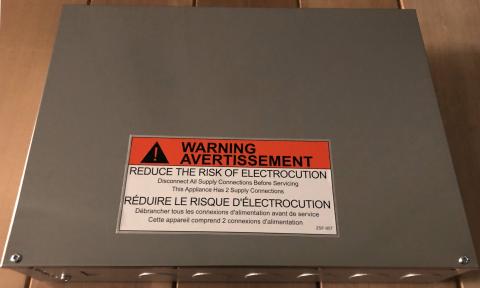

Harvia Xenio LTY45
Power Extension Unit for CX30/45 Controls
Harvia power extension unit LTY45 is used for the control of additional electric sauna heaters in large saunas. By using the power extension unit LTY45 the maximum load range can be increased up to 38 kW (the maximum load depends on the type of the control unit)
Features
- Works with Xenio CX30/45/170 Control Units
- Increases max load range to 38kW
- Can be wall mounted
- 14.3"W x 2.9"D x 10.5"H
Includes
- Power Unit
- Installation and Operation Manual
- Limited Warranty
Specifications
| Model | Xenio LTY45 |
|---|---|
| Supply Voltage (Per extension box) | 240 V 1Ph |
| Length | 14.3" (364mm) |
| Width | 2.9" (73mm) |
| Height | 10.5" (267mm) |
| Weight | 6.1lbs |
