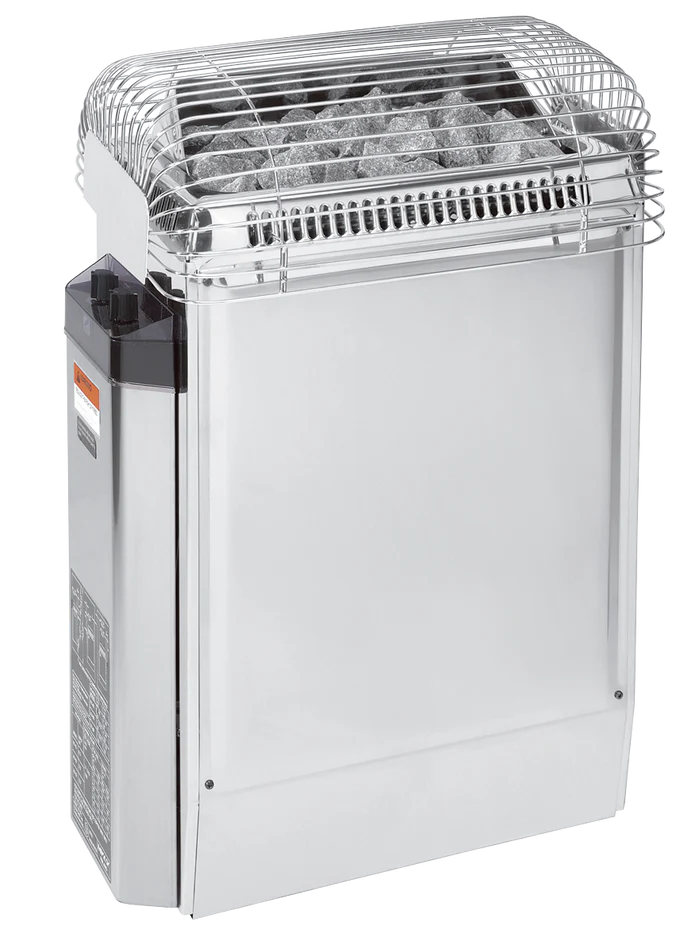

ELECTRIC SAUNA HEATER HARVIA TOPCLASS KV-45, KV-60, KV-80
Electric Sauna Heater Harvia Topclass KV-45 is a user-friendly heater. The stone space is made of stainless steel.
The illuminated control panel is placed on the side of the heater towards the top section, which makes it easy to access the switches even in the dim lighting of a sauna room.
The Electric Sauna Heater Harvia Topclass KV-45 is easy to mount on a separate mounting rack, and the control panel can be mounted either on the right side or left side of the heater as appropriate. The outer casing of the heater is made of stainless steel.
Technical Information
MODELS:
1. KV-45
| Sauna Room min.-max. cu. feet (m³) | 100-210 (3-6) |
| Watts | 4500 |
| Voltage | 240 |
| Amps | 18.8 |
| Wire Size | 10 |
| Phase | 1 |
| Weight | 42 lbs |
|---|---|
| Dimensions | 20 × 15 × 35 in |
2. KV-60
| Sauna Room min.-max. cu. feet (m³) | 170-300 (5-9) |
| Watts | 6000 |
| Voltage | 240 |
| Amps | 25 |
| Wire Size | 10 |
| Phase | 1 |
|
Weight |
42 lbs |
|---|---|
| Dimensions | 20 × 15 × 35 in |
3. KV-80
| Sauna Room min.-max. cu. feet (m³) | 250-425 (7-12) |
| Watts | 8000 |
| Voltage | 240 |
| Amps | 33.3 |
| Wire Size | 8 |
| Phase |
1 |
| Weight | 42 lbs |
|---|---|
| Dimensions | 20 × 15 × 35 in |
Read and follow at all times the Harvia Instructions for installation and use.
