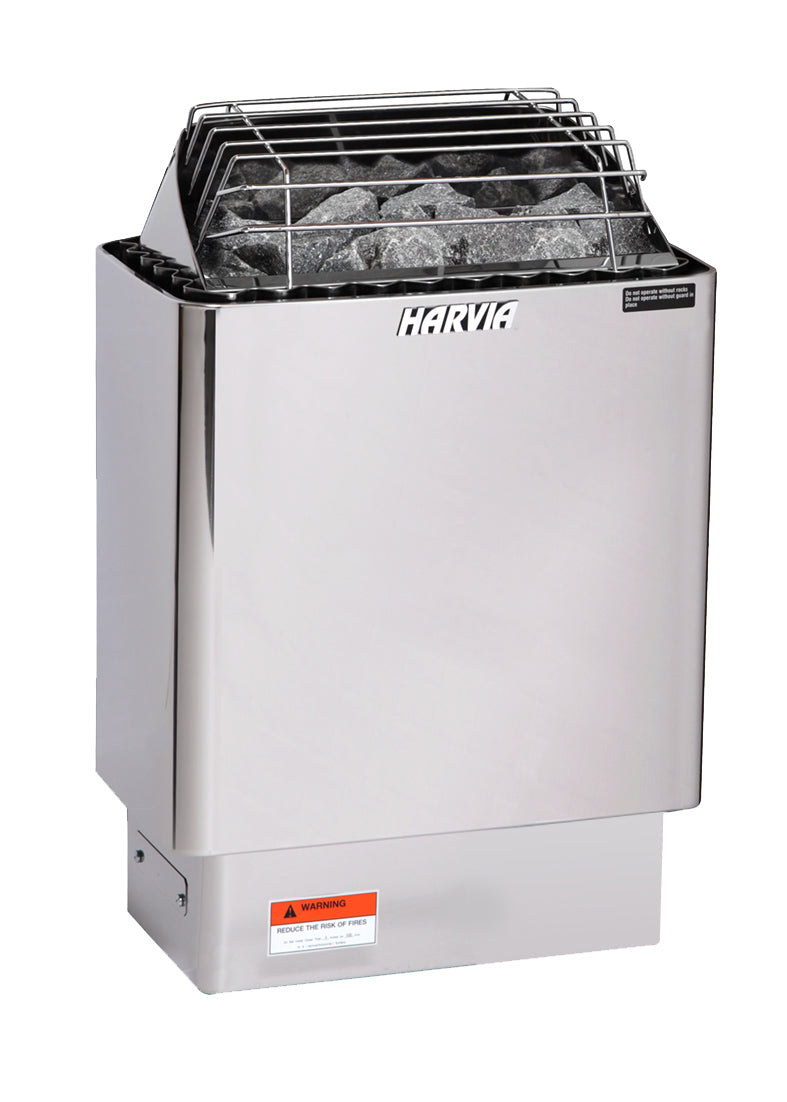

ELECTRIC SAUNA HEATER HARVIA KIP30-W, KIP45-W, KIP60-W, KIP80-W
Required Xenio Control and Sauna Stones sold separately
The electric sauna heater Harvia KIP30-W1, part of Harvia’s KIP series of electric sauna heaters, is a traditional Finnish wall-mounted sauna heater that is digitally controlled using the Harvia Xenio CX170-U1-15 Control Unit. While being a surprisingly space efficient sauna heating option, Harvia makes no sacrifices to its design or quality to achieve this goal. As a result of its space efficiency, it fits a wide variety of sauna sizes and layouts with ease.
The large stone space provides optimal heat release while also allowing the user to pour water thus creating a true Finnish sauna experience. The efficient thermal management of its design allows it to be wall mounted and for the temperature of the outer casing of the heater to stay comparatively low. Built right in the heart of sauna culture in rural Finland, Harvia electric sauna heaters are designed by the foremost sauna experts and are assembled with high quality materials. The electric sauna heater Harvia KIP30-W1 and all Harvia KIP series electric sauna heaters are a true marvel of Finnish sauna engineering that are ready to stand the test of time in your sauna.
- Wall mounted for an efficient sauna layout
- Compact sizing: 16″ W x 11″ D x 24″ H (400 x 280 x 600 mm)
- Large interior stone space for genuine Finnish sauna steam and heat
- Made in Finland
- Stainless steel interior finishing elements
- Attractive stainless steel exterior casing finishing
- Protective rock grill
- Requires Harvia Xenio CX170-U1-15 Control Unit to operate
For further information visit harvia.fi.
Technical Information
MODELS:
1. KIP30-W steel
| Model | Electric Sauna Heater Harvia KIP30-W1 |
| Sauna Room min.-max. cu. feet (m³) | 0-130 (0-3.3) |
| Wattage (W) | 3000 |
| Voltage (V) | 240 |
| Current (A) | 12.5 |
| Wire Size | 12 |
| Phase | 1 |
| Weight | 45 lbs |
|---|---|
| Dimensions | 16 x 11 x 24 inch |
Required Xenio Control and Sauna Stones sold separately
2. KIP45-W steel
| Model | Electric Sauna Heater Harvia KIP45-W1 |
| Sauna Room min.-max. cu. feet (m³) | 100-210 (2.8-6) |
| Wattage (W) | 4500 |
| Voltage (V) | 240 |
| Current (A) | 18.8 |
| Wire Size | 10 |
| Phase | 1 |
| Weight | 40 lbs |
|---|---|
| Dimensions | 16 x 11 x 24 inch |
Required Xenio Control and Sauna Stones sold separately
3. KIP60-W steel
| Sauna Room min.-max. cu. feet (m³) | 170-310 (5-9) |
| Watts | 6000 |
| Voltage | 240 |
| Amps | 25 |
| Wire Size | 10 |
| Phase | 1 |
| Weight | 40 lbs |
|---|---|
| Dimensions | 16 x 11 x 24 inch |
Required Xenio Control and Sauna Stones sold separately
3. KIP80-W steel
| Sauna Room min.-max. cu. feet (m³) | 250-425 (6-12) |
| Watts | 8000 |
| Voltage | 240 |
| Amps | 33.3 |
| Wire Size | 8 |
| Phase | 1 |
| Weight | 40 lbs |
|---|---|
| Dimensions | 16 x 11 x 24 inch |
Required Xenio Control and Sauna Stones sold separately
Read and follow the Harvia Instructions for installation and use at all times.
